Unitree B2

Unitree B2

€0,00 EUR
€0,00 EUR
Sale Sold out

Go beyond limits

Features:

  • Fastest running industrial-grade quadruped robot at 6m/s
  • All-rounded to cope with a variety of environments
    Excellent terrain adaptability to ensure stable travel on slippery or uneven surfaces.
  • Climbing stairs as if they were flat
    Excellent sustained stair climbing, effortlessly tackling steps.
    Remains extremely stable and balanced when climbing.
  • Overcoming obstacles. Stable and tough.
    Superior obstacle-crossing ability, easy to cross the mess of wood piles, 40cm high platforms and other obstacles
  • Plug-in Battery
    Stable and Reliable Autonomous Charging
    B2 battery supports quick change and also supports autonomous charging solutions(optional), suitable for a wide range of solutions.

Specifications:

Size (Standing) ≈ 1098mm×450mm×645mm
Size (Lying Prone) ≈ 880mm×460mm×330mm
Weight ≈ 60kg Total weight (battery included)
Battery Performance Battery capacity 45Ah (2250Wh), voltage 58V
Endurance Ability Battery life 4-6h
Walking without load > 5h, and the mileage > 20km
Walking with 20kg load > 4h, and the mileage> 15km
Wheeled Foot Optional
Load (Standing) Max. 120kg
Load (Walking) > 40kg
Continuous Stair Climbing Stairs of 20~25cm
Climbing Activity Climb up and down stairs of 40cm in forward direction
Operating Temperature -20℃ ~ 55℃
Climbing Angle > 45°
Running Speed > 6m/s
Ingress Protection IP67

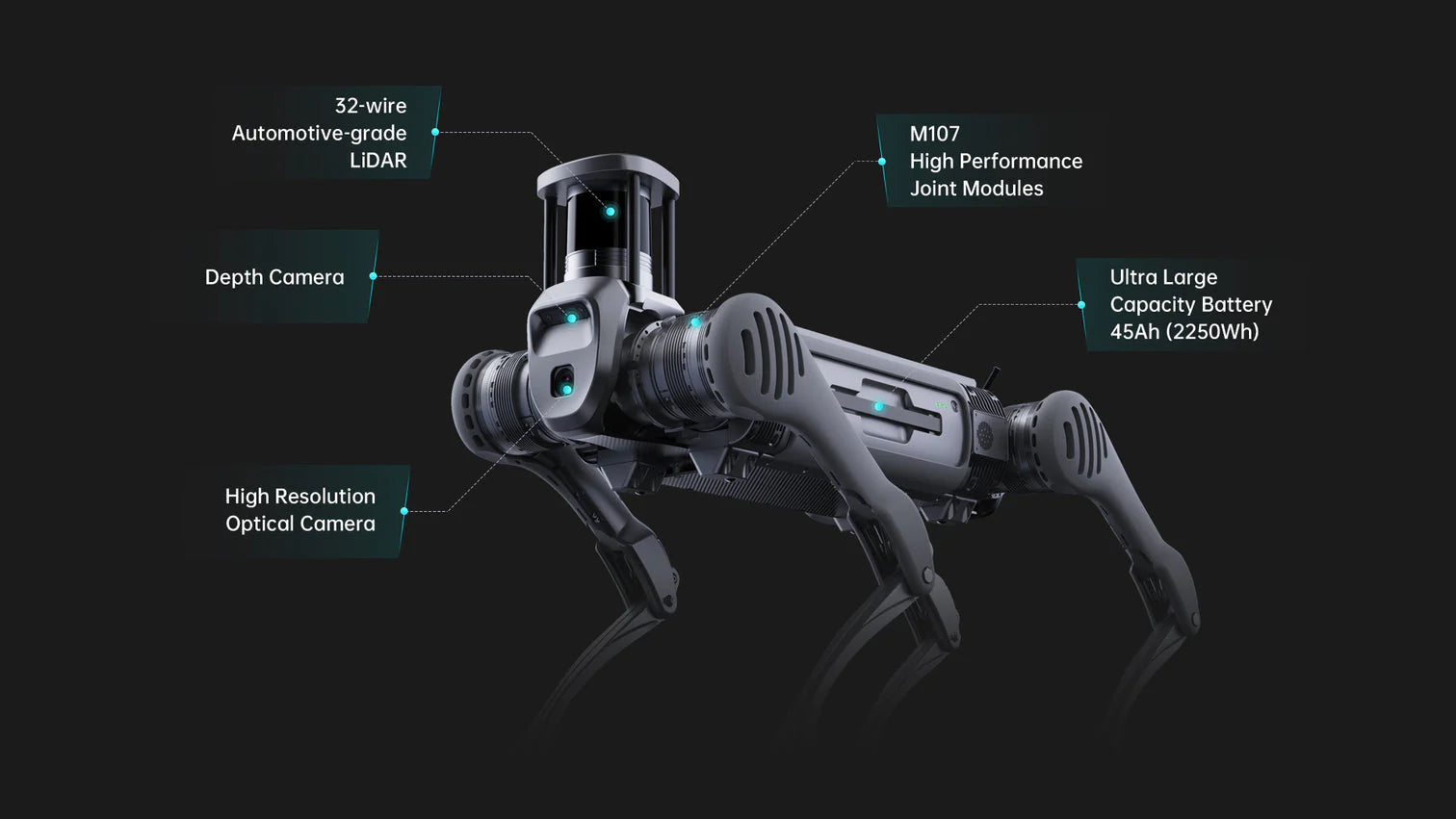

Control and Perception Standard Configuration: Intel Core i5 (Platform Function), Intel Core i7 (User Development)
Optional Configuration: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices)
Sensing Sensor 3D LiDAR ×1 + Depth camera ×2 + Optical camera ×2 (Varies with different configurations)
External Interface 1000M-Base-Ethernet×4 USB3.0×4
12V×4 5V×1 24V×4 BAT×1
