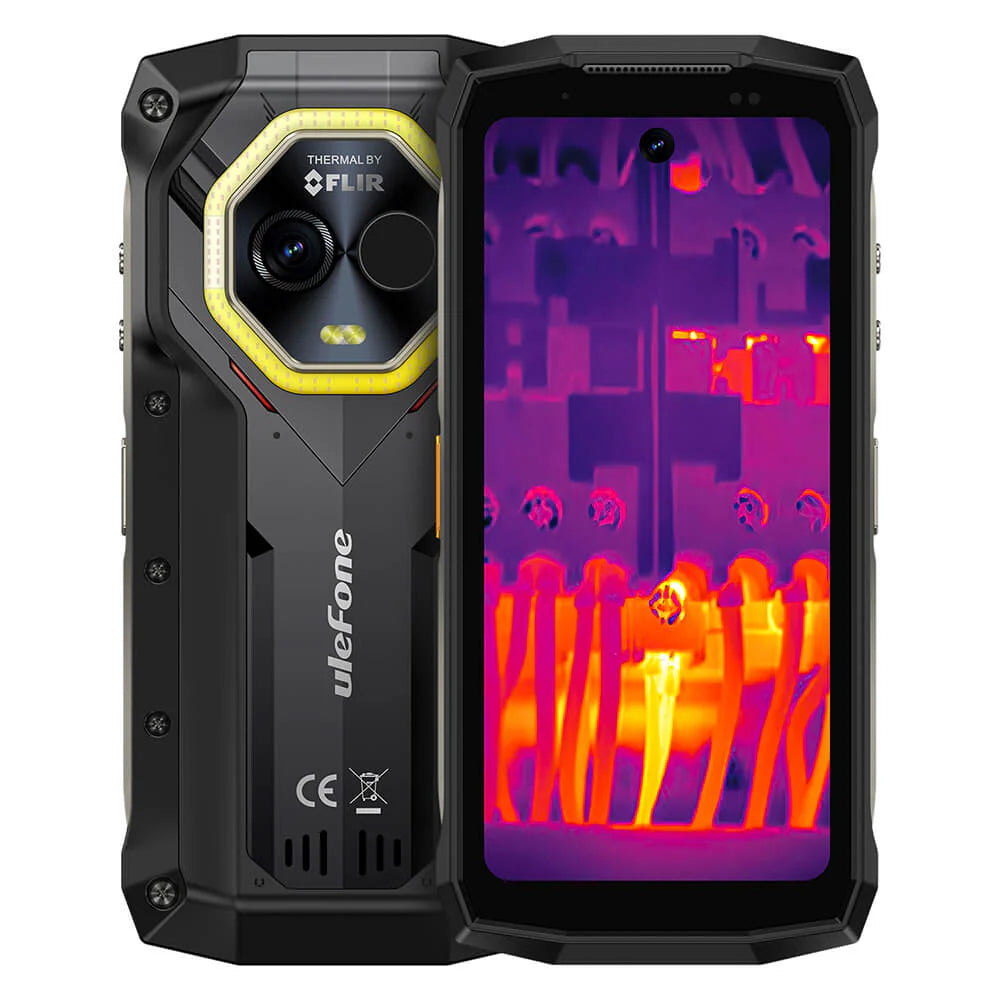

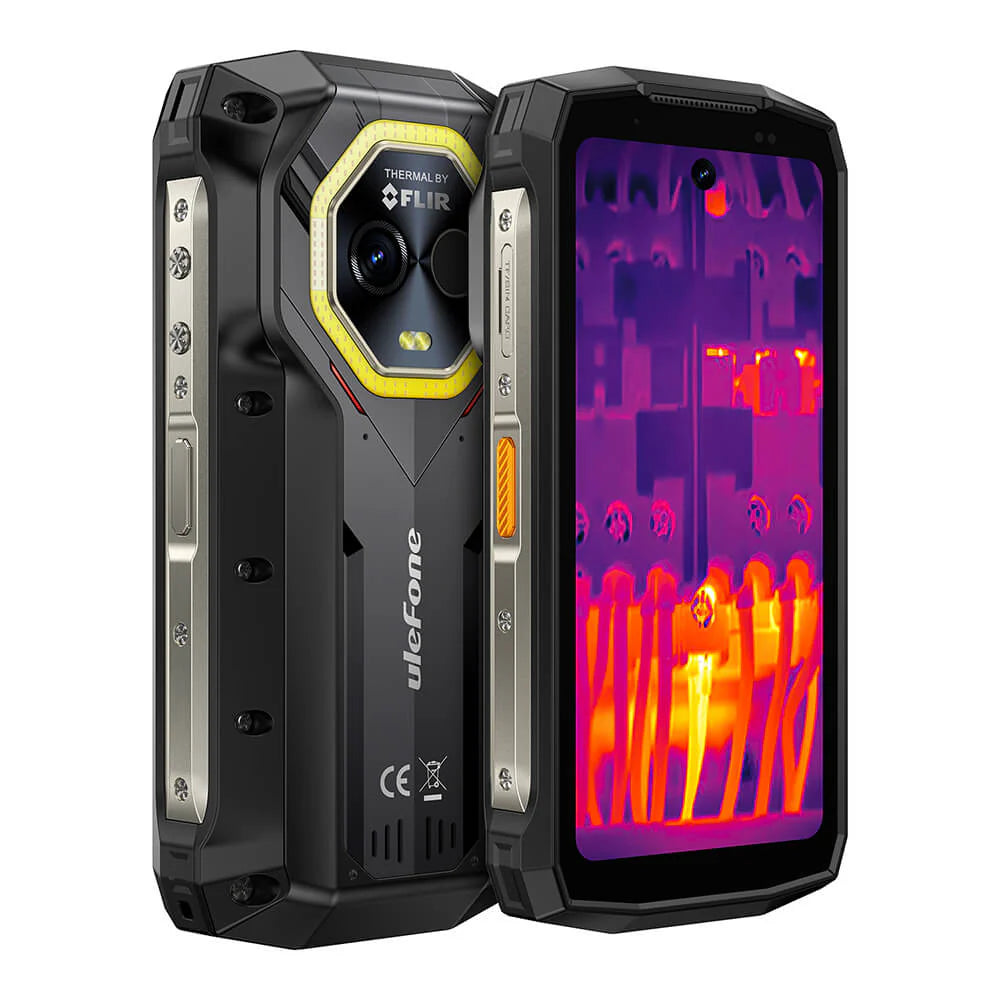

Ulefone Armor Mini 20T PRO 5G Rugged Phone with Thermal Camera, 6200mAh Battery 33W Fast Charge, 4.7" 90Hz IP68 Waterproof, 16GB+256GB Android 14, 50MP Camera, NFC

Name: Ulefone Armor Mini 20T PRO 5G Rugged Phone with Thermal Camera, 6200mAh Battery 33W Fast Charge, 4.7" 90Hz IP68 Waterproof, 16GB+256GB Android 14, 50MP Camera, NFC
Brand: Teleplus GSM Co., Ltd
Price: 237.0 EUR
Availability: InStock

€237,00 EUR

Sale Sold out

Product variants

Quantity

Global 5G Connectivity: High-efficiency 5G technology supports dual SIM dual standby to facilitate an intelligent and seamless professional workflow across global networks.

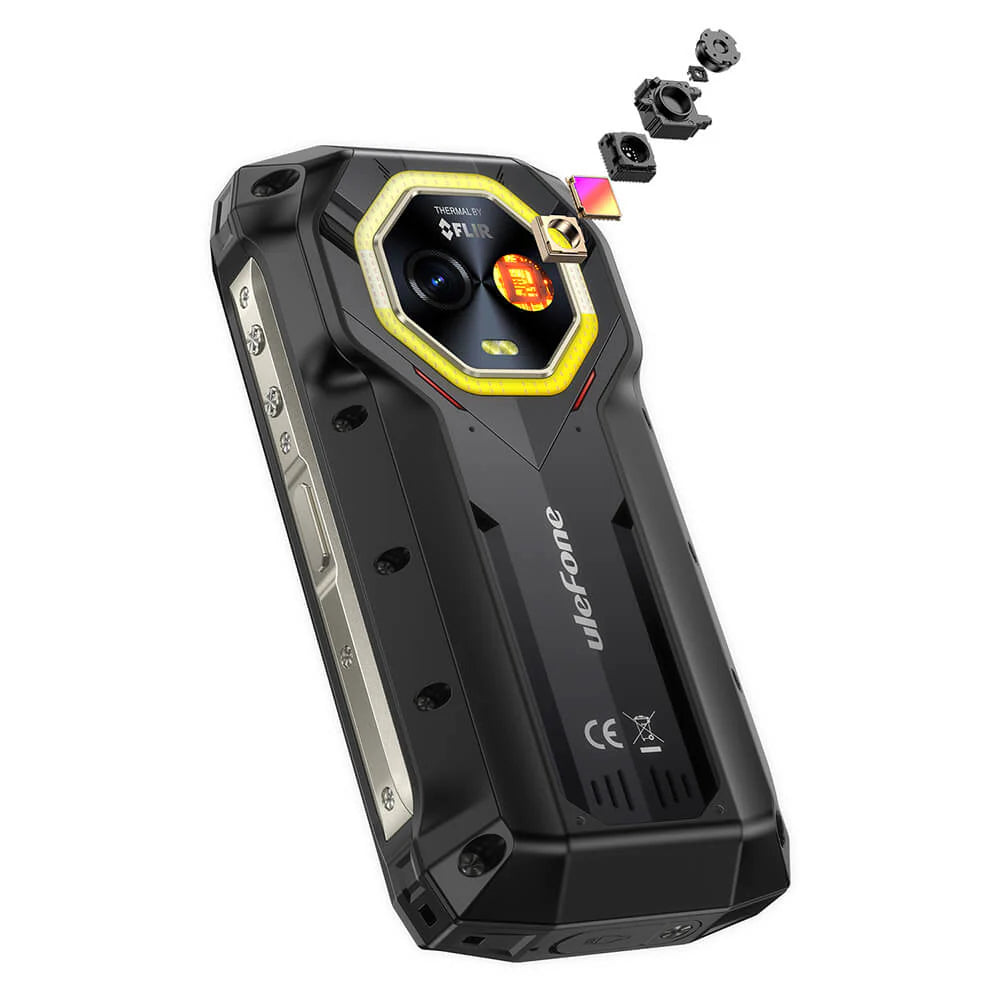

FLIR Thermal Imaging: The integrated FLIR Lepton 3.5 thermal sensor enables rapid hotspot detection and precise diagnostic analysis via a high-resolution interface and extended battery life.

Compact Ergonomic Design: Engineered with a credit-card-width footprint for effortless one-handed operation, this ultra-portable chassis ensures maximum mobility in demanding field environments.

Dimensity 6300 Performance: The 6nm 8-core chipset paired with up to 16GB RAM(8GB RAM + 8GB Virtual RAM) and 256GB storage delivers unrivaled processing power for memory-intensive applications and high-speed data management.

Professional-Grade Optics: A 50MP Samsung GN1 primary sensor with a 1/1.31" ultra-large format and a 32MP front camera provide high-fidelity imaging for critical documentation and visual communication.

Solid-State Battery: The 6200mAh sub-zero solid-state battery maintains operational integrity at -20°C and supports 33W fast charging for reliable performance in extreme climates.

Military-Grade Durability: Built to MIL-STD-810H and IP68/IP69K standards with Corning Gorilla Glass, this device provides ultimate protection against water, dust, and high-impact drops.

High-Brightness Display: The 4.7-inch 90Hz display features 700 nits of brightness and 373 PPI to ensure sharp, fluid visuals and superior readability in outdoor sunlight.

Versatile LED System: A 130-LED array delivers 500 lumens of adaptive illumination with dedicated emergency signaling modes for specialized field operations and safety.

Advanced Professional Tools: Android 15, IR Remote, Fingerprint Unlock, NFC, Headset-Free FM Radio, Custom Key, Gloves Mode, Underwater Camera, Outdoor Toolbox, GPS+Glonass+QZSS+Galileo+BeiDou, etc.

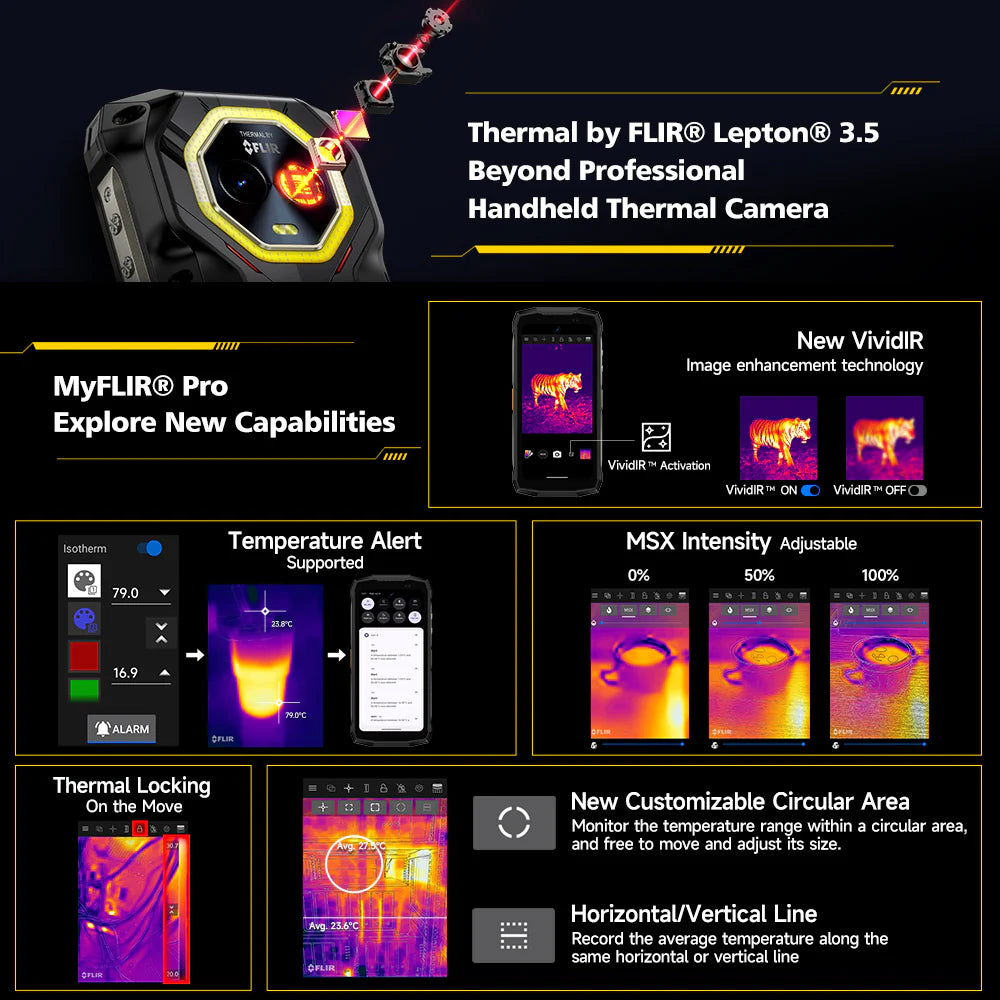

Thermal Imaging

Integrated FLIR Thermal Imaging

Thermal Resolution: 160x120

Pixel Pitch: 12μm

Sensitivity: < 50mk

Measurable Temperature Range: -10°C to 450°C

Accuracy: ±3℃

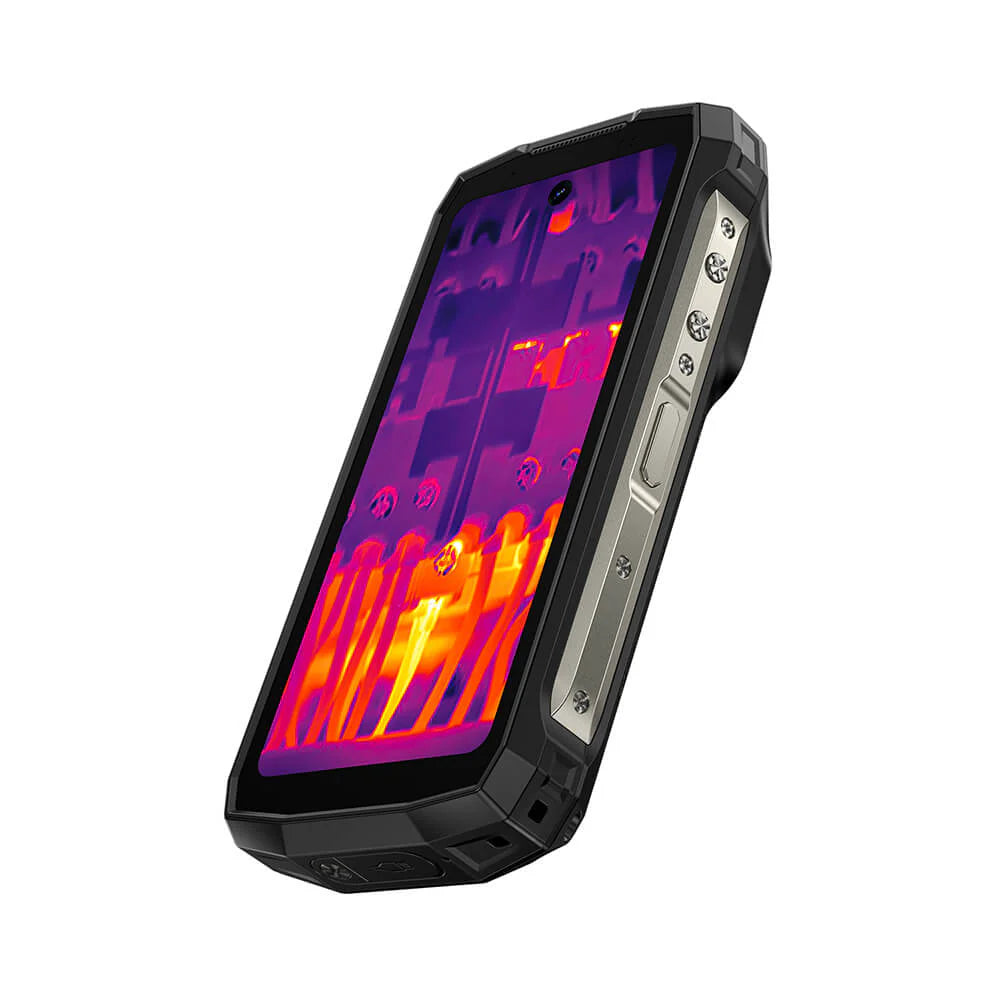

Visualizes heat that is invisible to the naked eye, highlighting temperature contrasts.

Pre-install MyFLIR Pro App

Warning Light

Red light, blue Light, red-blue light

Simulated warning sound: fire, ambulance, police car, and other first responding warning sound

Lighting modes: 2, constant or blink

Versatile Light

500 Max Lumens

130 LEDs

5W Max Power

IPX8 Waterproof

Charging and battery

6200mAh Battery

Built-in lithium-ion polymer battery

USB Type-C port

Supports 33W fast charging

Supports 15W wireless charging

Supports wireless reverse charging

Battery Life

Standby Time	Up to 336 Hours
Talk Time	Up to 34 Hours

*Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity.

*Non-removable battery. Removing the battery may cause damage to the device.

*Use with original charger and data cable, the max charging power can reach 33W. The actual charging power will intelligently change with different scenarios, please refer to the actual use.

*Under the Ulefone private protocol, the max wireless charging power is 15W, also compatible with Qi protocol with max 15W wireless charging. The actual charging power will intelligently change with different scenarios, please refer to the actual use.

Rugged

Splash, Water and Dust Resistant

Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529

Rated IP69K under IEC standard 60529

MIL-STD-810H Certification

*Armor Mini 20T Pro is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2.0 meters up to 30 minutes).

*Charger and accessories are not water-resistant.

*Splash, water and dust resistance are not permanent and might decrease as a result of normal wear.

*Do not attempt to charge a wet Armor Mini 20T Pro.

*Liquid damage not covered under warranty.

Processor

MediaTek Dimensity 6300

CPU: MediaTek MT6835T

CPU architecture: 2*Cortex-A76+6*Cortex-A55, 6nm process

CPU frequency: Octa Core, up to 2.4GHz

GPU: Arm Mali-G57 MC2

Storage and RAM

8GB + 256GB

RAM: 8GB large memory，LPDDR4X

Flash storage: 256GB phone storage, UFS 2.2

microSD memory card Up to 2TB

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.

*The Virtual Memory Expansion can be activated in Settings and adds up to 8GB of RAM. Some software may not be compatible with this feature.

*microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible.

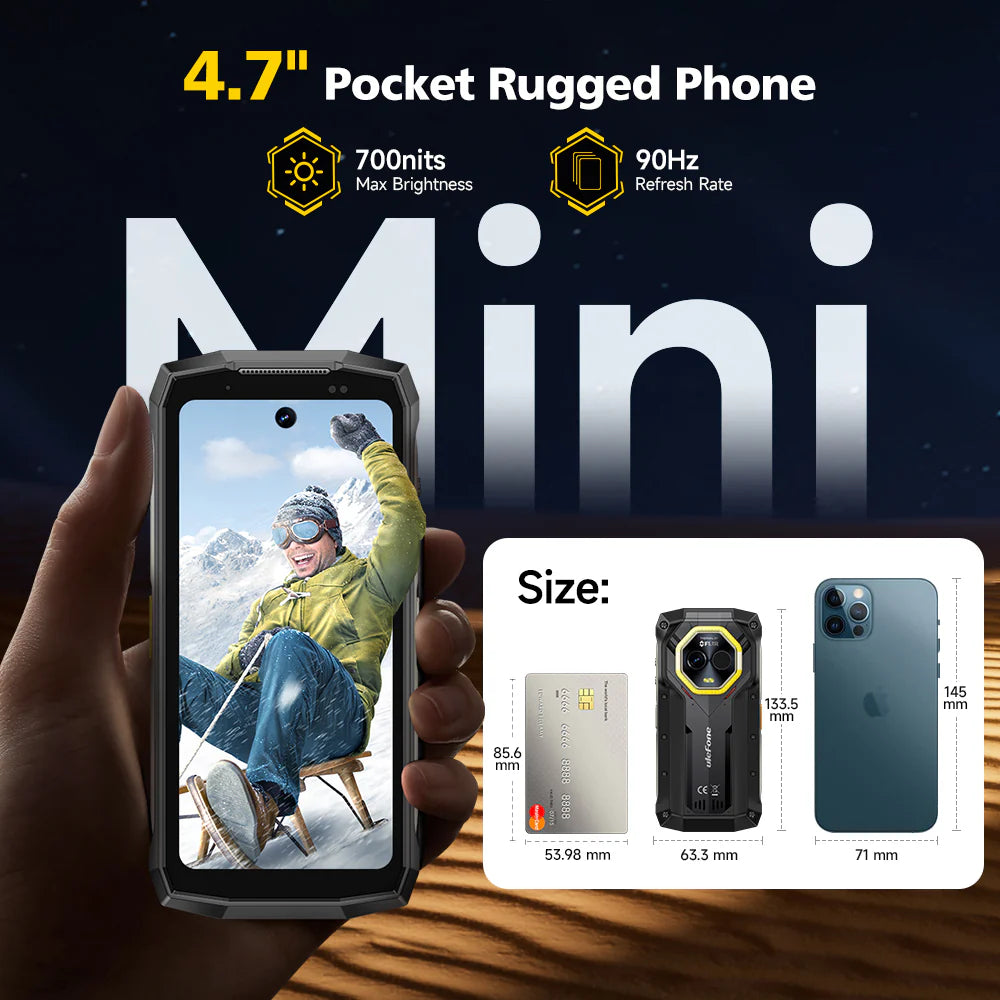

Display

4.7‑inch (diagonal)

Punch-hole Display

All-screen LCD Multi-Touch display with IPS technology

20 : 9, 720 x 1600 HD+

373 ppi

Refresh rate: 90 Hz

Corning Gorilla Glass Victus

Fingerprint-resistant oleophobic coating

*With a rounded corners design on the display, the diagonal length of the screen is 4.7 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).

*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.

Rear Camera

50MP camera

1/1.31'' Ultra-large Lens

Samsung GN1 sensor, 1.2μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture

Photo resolution: up to 6144 x 8192 pixels

Video resolution: up to 2K

Dual LED Flash

Rear camera photography features

Normal mode, Film mode, 50MP mode, Night mode, Document correction, GroupPhoto, AI Emoji, Gif, Portrait, Sports, Pro mode, Panorama, Slow motion, Time lapse, Intelligent acanning

HDR, AI scene detection, Filters, Location info, Brand watermark, Camera mute, Touch shooting, Time-lapse, Grid line, Volume key feature, Anti flicker, Long Press

Rear camera video features

2K recording	30fps
1080P recording	30fps
720P recording	30fps
480P recording	30fps

*The actual photo and video resolution may vary depending on the shooting mode.

*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

Front Camera

32MP selfie camera

Samsung GD1 Sensor

0.8µm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture

Front camera photography features

Normal mode, Film mode, GroupPhoto, AI Emoji, Gif, Portrait

Filters, Location info, Watermark, Mirror, Camera mute, Touch shooting, Time-lapse, Grid line, Volume key feature, Anti flicker

Front camera video features

2K recording	30fps
1080P recording	30fps
720P recording	30fps
480P recording	30fps

*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

Underwater Photography

Supports to take photos & video recording

Supports to start/end operation underwater

Supports to quickly switch shooting modes underwater

Unlock Options

Supports Fingerprint Unlock

Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together

Capacitive Touch Sensor

Response speed: Up to 0.1s

Supports the enrollment of 5 sets of fingerprint

Supports Face Unlock

Network

Supports use of dual SIM cards from different carriers

Both cards can access 5G connectivity simultaneously

Dual Nano SIM; either card can be set as the primary card

Supports 5G/4G/3G/2G

Supports VoLTE HD calling

Supported network bands

5G Network

NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41
66/71/77/78/79

4G Network

LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19
20/25/26/28A/28B/66/71

LTE-TDD: B32/34/38/39/40/41

3G Network

WCDMA:B1/2/4/5/6/8/19

2G Network

GSM:B2/3/5/8

CDMA:BC0/BC1/BC10

*Dual 5G SIM requires the support of local telecom operator services, and may not be available in all regions.

* Only certain regions and telecom operators support VoLTE.

Connectivity

WLAN

Supports protocols: 802.11 a/ac/b/g/n

Supports 2.4G/5G

Bluetooth

Supports Bluetooth 5.2

Navigation and positioning

Supports multiple positioning systems

GPS

GLONASS

Galileo

BEIDOU

QZSS

Supports Digital Compass

NFC

Supports Google Pay

Supports Transit, Loyalty Cards, Gift Cards and Plane tickets

*Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer tohttps://pay.google.com/about.

Operating System

Android 15

Pure Android System

No ads

Sensors

Thermal imaging sensor, Infrared sensor, NFC, Proximity sensor, Light sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor

Multimedia

Video	MOV/MKV/3GP/MP4
Audio	MID/FLAC/MKA/MP3/M4A AAC/AMR/OGG/MP2
Image	GIF/JPEG/PNG/BMP
Ebook	TXT/HTML

Ports

USB 2.0, Type-C

3.5 mm Headphone Jack

Card slot

Two(2), Nano SIM + Nano SIM / microSD

Notification Light

Support, tri-color light, red/green/blue

Supports charging prompt

Language support

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

In the box

1 x Armor Mini 20T Pro

1 x AC power charger (100~240V)

1 x Type-C to Type-C Data cable (100cm)

1 x Protective Film (Pre-installed)

1 x Tempered Glass Screen Protector

1 x SIM needle

1 x Lanyard

1 x Multi-language user manual

1 x Multi Function Instruction card

1 x Warranty card

1 x Charging Instruction card
